All Products
The most complete line of specialty tube tools in the industry. Engineered in Dayton, Ohio and trusted by maintenance professionals worldwide since 1892.
Tube End Mill™
Tube End Mill & Preparation Tool
Elliott's all-new tube end mill for 3/4"–1-1/2" tube applications. Featuring AlCrN-coated inserts, a rugged locking mechanism, and adjustable projection collar. Fast. Precise. Built to last.
Tube Tool Products
01Tube Expanders
Condenser, Boiler & Specialty Expanders
Elliott tube expanders are the industry standard for installing tubes in heat exchangers, boilers, and condensers. Available for virtually every tube OD, wall thickness, and material.
- Tube OD: 1/2" to 4" (12.7 – 101.6mm)
- Tube Section: Straight
- Wall Thickness: Standard, Heavy & Thin
- Material: Carbon Steel, Stainless, Specialty Alloy
- Made in USA — Dayton, Ohio

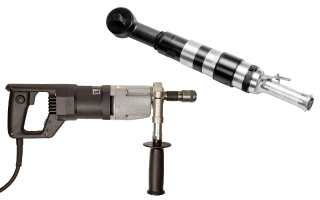

02Tube Installation
Expanders, Motors, End Prep, Gauges & Lubricants
Elliott offers a complete range of tube installation supplies — from rolling motors and end prep tools to tube hole gauges, grooving tools, and lubricants — everything you need to get the job done.
- Tube Size: 0.250" to 6.000" OD
- Electric & Pneumatic Rolling Motors
- Tube End Facers, Hole Gauges & Grooving Tools
- Tool Lubricants & Sheet Hole Brushes
03Tube Cleaners
Mechanical & Turbine Tube Cleaning Systems
Mechanical tube cleaners for removing scale, biofilm, and fouling from heat exchanger and condenser tubes without chemicals — restoring full heat transfer efficiency.
- Tube ID: 3/8" to 2" (9.5 – 50.8mm)
- Deposit Type: Soft, Medium & Hard Scale
- Drive: Electric Motor, Air & Water-Driven
- Flush: Wet & Dry
04Tube Plugs
Tapered, Mechanical & Drive Plug Systems
Precision-machined tube plugs for isolating leaking or damaged tubes in heat exchangers and boilers. Available in every size and material for every application.
- Tube OD: All standard sizes
- Material: Copper, Brass, Carbon Steel, Stainless, Titanium
- Type: Tapered, Mechanical, Drive & Pull
- ASME & TEMA compliant designs available
05Tube Testers
Vacuum & Pressure Test Guns
Elliott RECON Series tube leak test guns provide fast, reliable detection of tube leaks in heat exchangers, condensers, and boilers — vacuum and pressure options available.
- Tube ID: 0.280" to 2.456" (RECON 1500 Vacuum)
- Tube OD: 0.500" to 2.500" (RECON 1250/2500 Pressure)
- Type: Vacuum & Pressure Test Guns
- Field-ready, portable design

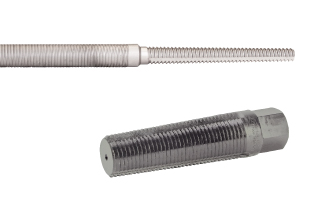

06Tube Removal
Spears, Pullers, Cutters & Bundle Saws
Tube pullers, spears, cutters, and bundle saws for removing tubes from tube sheets cleanly and efficiently — covering every extraction method from manual to fully automatic.
- Tube OD: 3/8" to 3" (9.5 – 76.2mm)
- Type: Spears, Collet Pullers, Tuggers, Cutters
- Power: Manual, Pneumatic, Hydraulic
- Hydraulic Pumps: up to 10,000 PSI
Metal Finishing Products
01Roller Burnishing Tools
Precision ID Surface Finishing
Produce mirror-quality ID finishes in a single pass — faster and more economical than honing. Used in heat exchanger manufacturing, aerospace, and precision machining.
- Bore ID: 1/4" to 12"
- Surface Finish: 4–8 Ra in one pass
- Tolerance: ±0.0001"
- Compatible: CNC & manual machines
Compare Tube Tools
Five product families covering the full tube lifecycle — from installation to extraction. Find the right tool for the job at a glance.
| Specification | InstallTube Expanders | MaintainTube Cleaners | InspectTube Testers | RepairTube Plugs | RemoveTube Removal |
|---|---|---|---|---|---|
| Primary Application | Tube Installation | Scale & Fouling Removal | Leak Detection | Tube Isolation | Tube Extraction |
| Tube Size Range | 1/2" – 4" | 3/8" – 2" | 0.280" – 2.500" | All Standard | 3/8" – 3" |
| Power Options | Electric / Pneumatic | Electric / Air / Water | Manual / Pneumatic | Manual / Hydraulic | Manual / Pneumatic / Hydraulic |
| Chemical-Free | |||||
| Field Portable | |||||
| Reusable | |||||
| Automated Options | |||||
| Best For | New Builds & Retubing | Routine Cleaning | QA & Commissioning | Emergency Leak Repair | Bundle Replacement |
| View | View | View | View | View |
Specifications shown are representative ranges. Contact Elliott's technical team for application-specific recommendations.
Not sure which tool you need?
Our technical team has been solving tube tool challenges since 1892. Call us or request a quote.
