Tube Plugs
Precision-machined tube plugs for safely isolating leaking or damaged heat exchanger and boiler tubes — in every size and material for every application.
RELIABLE TUBE ISOLATION
When a heat exchanger tube fails, fast and reliable plugging is critical to restoring operation. Elliott tube plugs are machined to precise tolerances for a leak-proof seal in every application.
We manufacture tapered plugs, mechanical plugs, and drive plugs in virtually every material — copper, brass, carbon steel, stainless, titanium, and high alloys.
Key Features
- Available for virtually every tube size and OD
- Copper, brass, carbon steel, stainless, titanium
- Tapered, mechanical, and drive-type configurations
- Precision machined for leak-proof sealing
- ASME and TEMA compliant designs available
- Made in USA — fast delivery from stock
Applications
Browse Tube Plugs
High-Pressure Heat Exchanger Plugs
Mechanical Tube Plugs
- Tube Size: 0.410" – 1.000" ID
- Max Pressure: 6,500 PSI
- Materials: Brass, Steel, Stainless, Titanium
Heat Exchanger & Boiler Tube Plugs

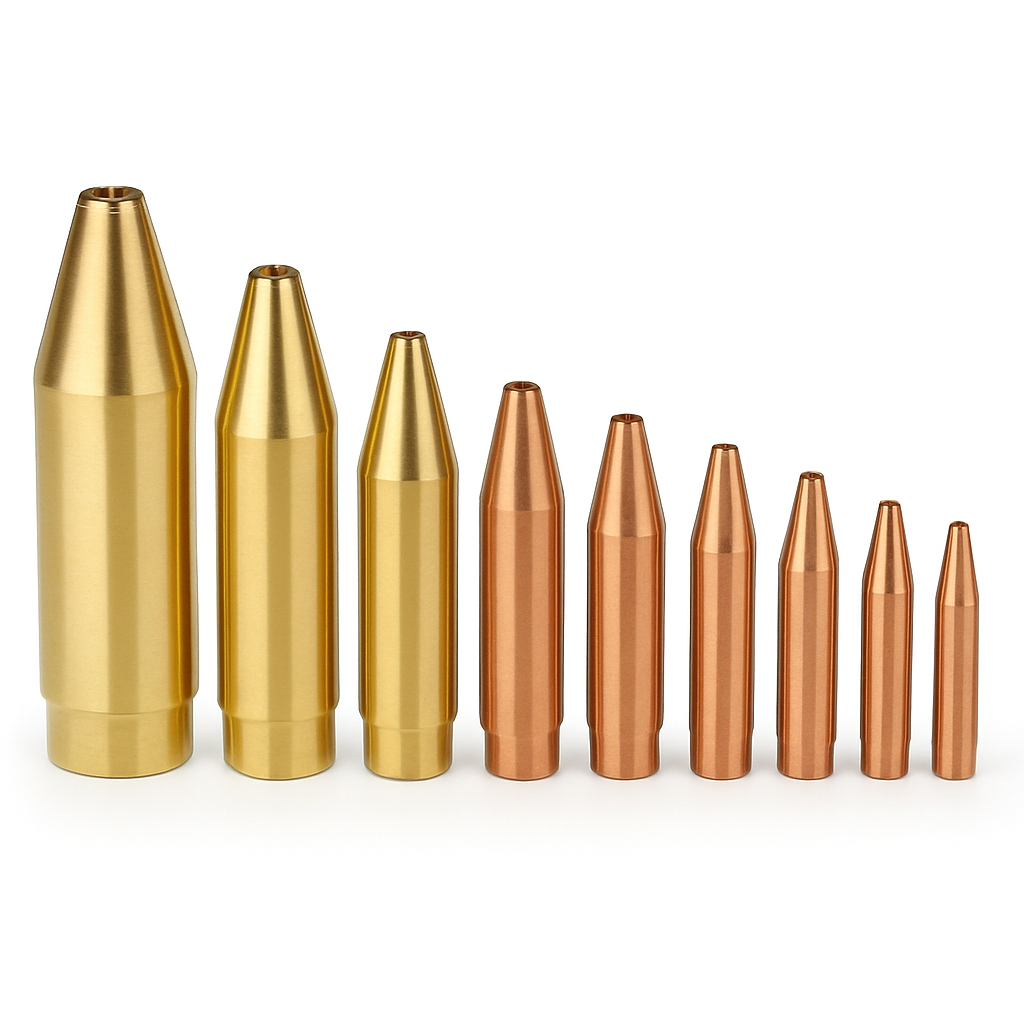

One-Piece Tube Plugs
- Tube Size: 0.375" – 3.000" OD
- Max Pressure: 150 PSI
- Materials: Brass, Carbon Steel, Stainless, Monel
Tapered Pin Tube Plugs

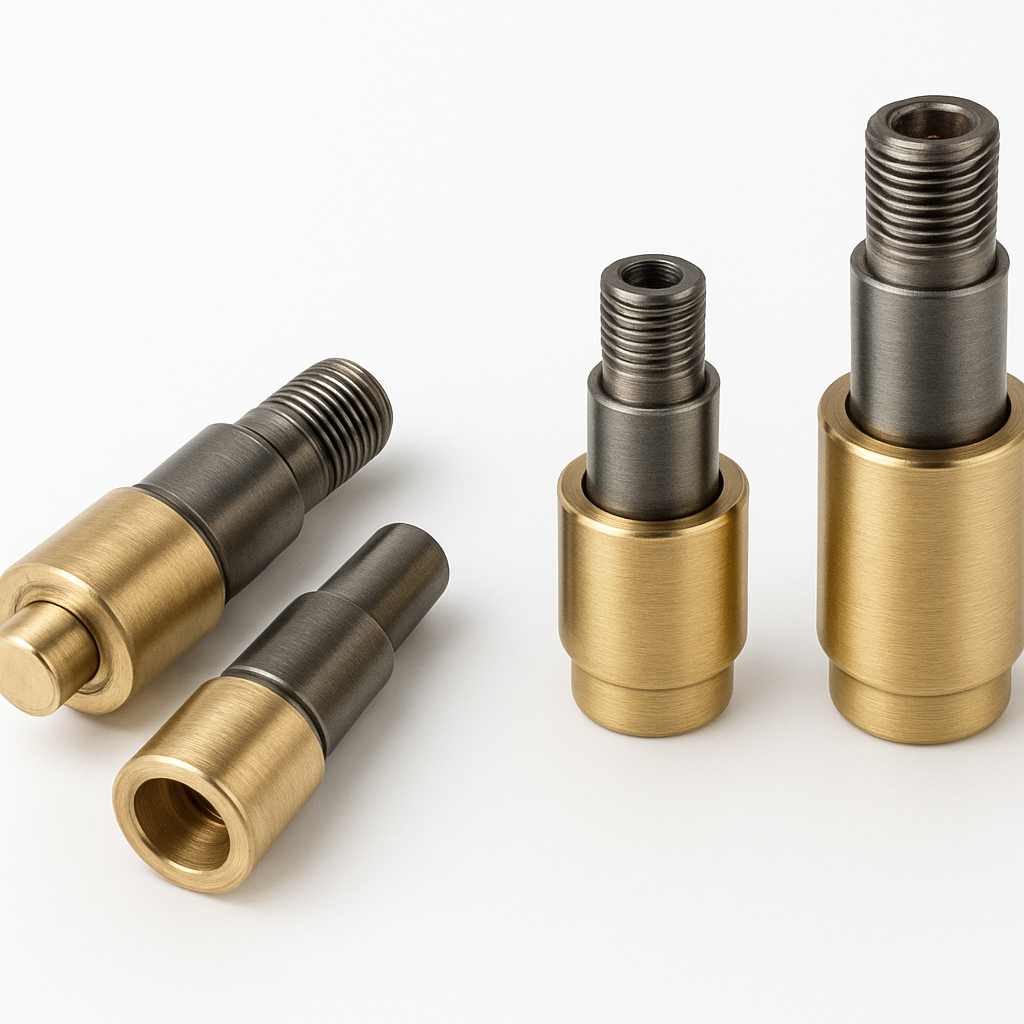

Two-Piece Tube Plugs
- Tube Size: 0.375" – 1.250" OD
- Max Pressure: 150 PSI
- Materials: Brass, Carbon Steel, Stainless, Aluminum
Air Cooled Heat Exchanger Plugs

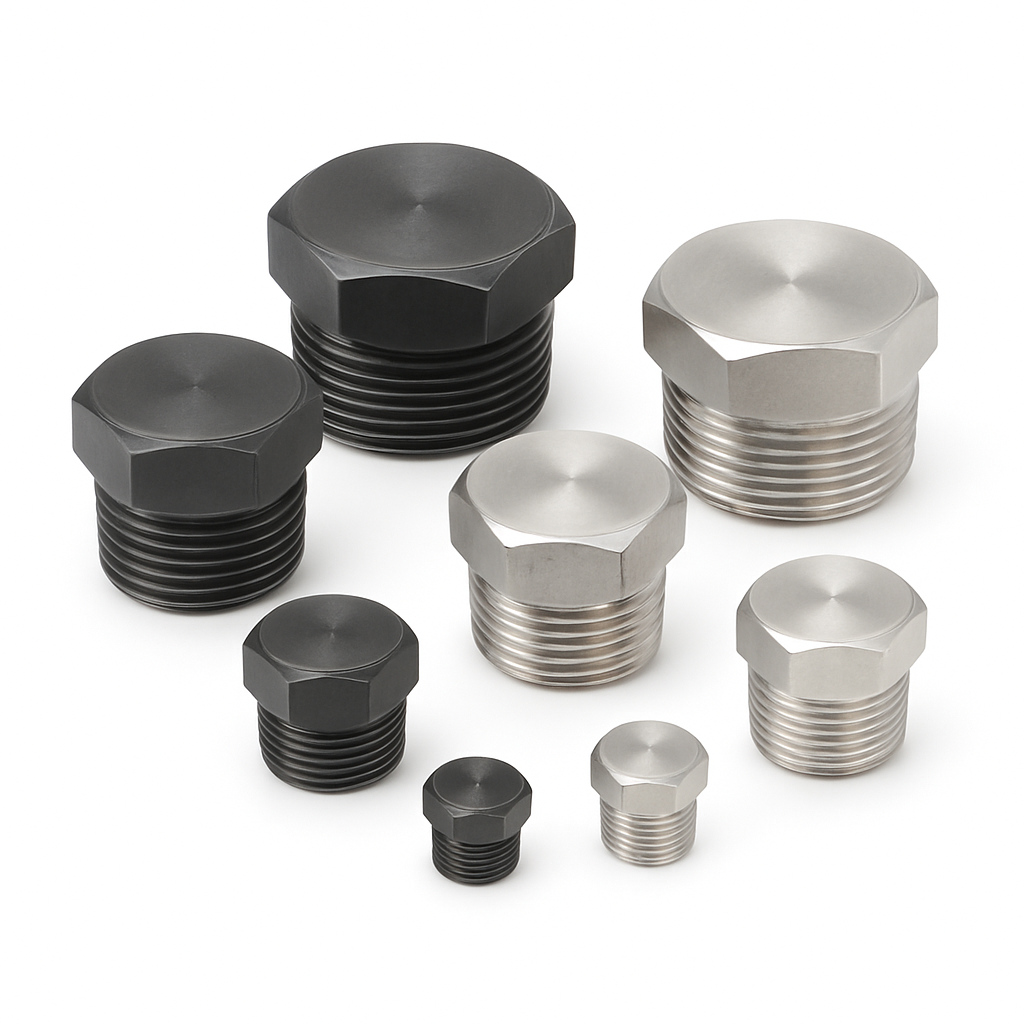

Header Plugs
- Plug Diameter: 1.125" – 1.375"
- Application: Air Cooled Heat Exchangers
- Materials: Carbon Steel, Stainless Steel
Tapered Tube Plugs
The original and most widely used tube plug design — driven cold with a hammer for a fast, reliable seal.
Tapered tube plugs are the most economical tube plugging solution. Available in copper, brass, carbon steel, and stainless steel in hundreds of standard sizes.
Features
- Simple hammer-driven installation
- Available in hundreds of standard sizes
- Copper, brass, carbon steel, stainless
- Fast delivery from stock
- Lowest cost per plug
Configurations
Mechanical Tube Plugs
Torque-applied mechanical plugs for applications requiring positive seating and retrievability.
Mechanical tube plugs use a tapered pin and expander body to create a positive mechanical lock in the tube. They can be retrieved and reused if necessary.
Features
- Positive mechanical lock — no movement after installation
- Retrievable design for tube inspections
- Torque wrench installation for consistent seating
- Suitable for high-pressure applications
- Stainless steel and specialty alloys available
Configurations
Spec Sheets & Catalogs
Need help selecting the right tool?
Our engineers can specify the exact tool for your tube size, material, and application.
